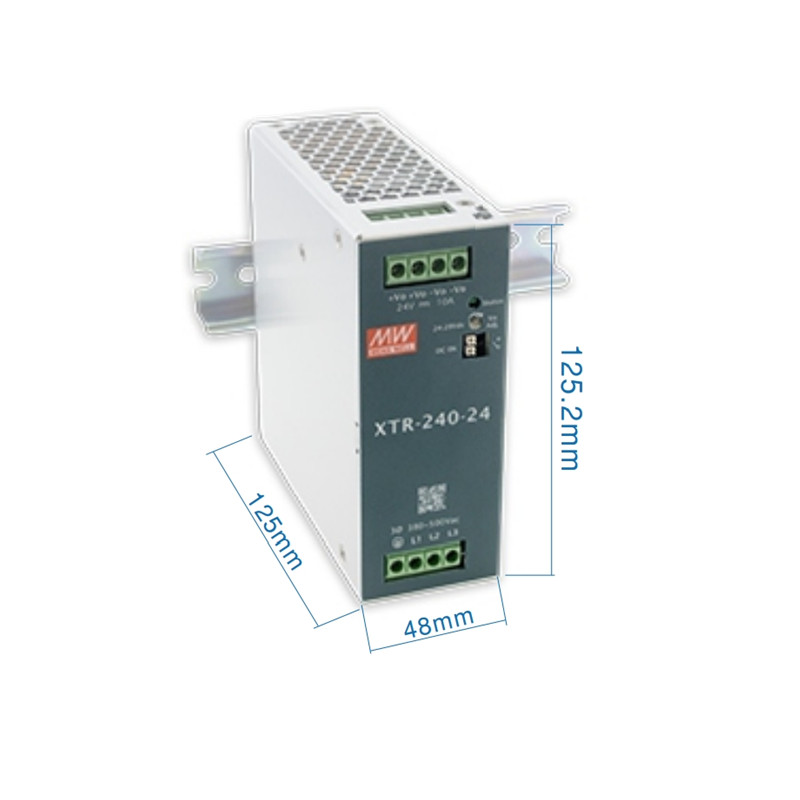

/Data/pyy-power/upload/image/20250703/XTR-240_副本.jpg XTR-240
  • XTR-240
    • XTR-240 2025-07-03

    Three-phase 320 ~ 600Vac wide input range, support dual-phase operation

    Ultra-low inrush current <10A

    Global certificates in multi-fields:

    CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1), and HazLoc C1D2 / marine DNV / SEMI 47

    Ultra slim design: 48~96mm (by model)

    High efficiency up to 96% and no load power dissipation <2.5W~3.1W (by model)

    150~200% peak power capability

    Current sharing up to 3840W for parallel use (XTR-240/480)

    Over voltage category III (OVC III)

    -40~+85℃ wide range operation temperature (>+60℃ derating)

    Various terminal blocks: screw-type, push-in, lever-type

    Internal PCB conformal coating protection

    Can be installed on DIN Rail TS-35/7.5 or 15

    5 years warranty
